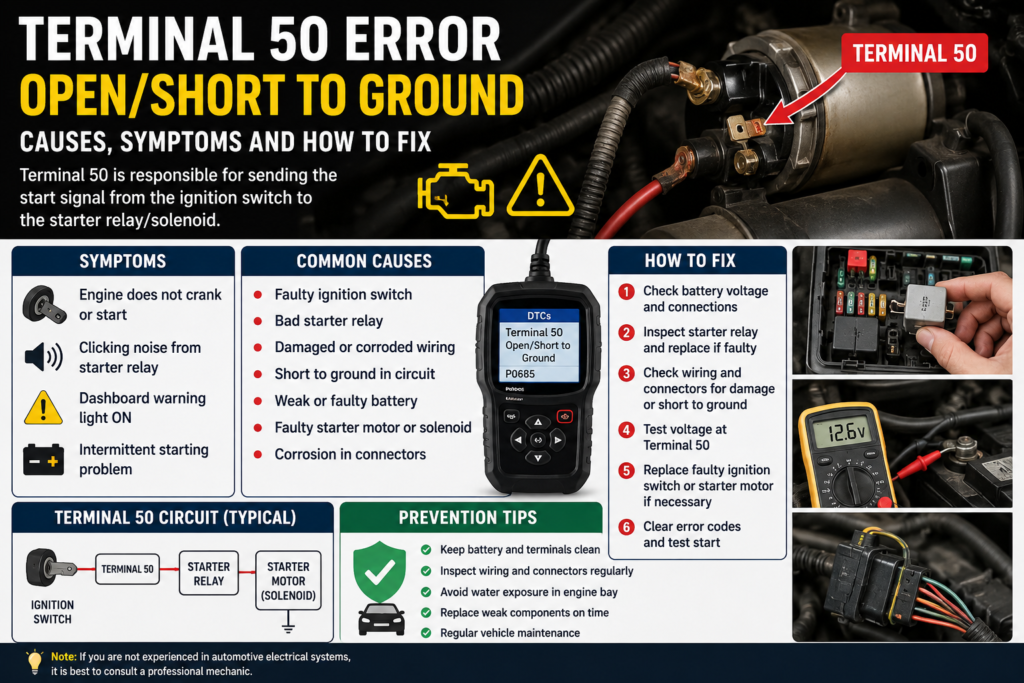

How to Fix Terminal 50 Error Open/Short to Ground Error: Complete Guide for Car Owners
If your car is showing a Terminal 50 Error, you should not ignore it. This can lead to bigger electrical issues as well as preventing your car from starting properly if left untreated. A lot of modern cars will show a “Terminal 50 Open/Short to Ground” fault code if there is an issue with the starter circuit, ignition wiring or relay system.
In this guide we will walk you through what the Terminal 50 Error is, what generally causes it, what symptoms to look for and how you can fix it step by step.
What is the Terminal 50 Error?
The Terminal 50 Error is a problem in the starter control circuit of a car. In automotive electrical systems, Terminal 50 is used to transfer power from the ignition switch to the starter motor to start the engine.
The vehicle may not crank or start when the system detects an open circuit or short to ground.
This is a common fault with many vehicles, especially German brands such as;
- Volkswagen AG
- Audi
- wine
- BMW
Terminal 50 Error Signs and Symptoms
Here is the most common sign of a Terminal 50 Error:
1. Engine Won’t Crank
The engine might not crank over when you turn the key or push the start button.
2. Clicking sound when starting up
You may hear a clicking sound from the starter relay area.
3. Problema de Arranque Intermitente
The vehicle starts okay sometimes, sometimes it will not start at all.
4. Dashboard Warning Lights
The dashboard could display a check engine light or a warning about the electrical system.
5. Starter Motor Problems
Damaged wiring can cause a weak or no signal to the starter.
Terminal 50 Open/Short to Ground Fault Main Causes
Before fixing the problem it is important to understand the root cause.
Ignition Switch – Faulty
If the ignition switch is bad it may not be sending voltage to terminal 50.
Starter Relay is Bad
The starter relay controls the power to the starter motor. If the circuit fails it may remain open.
Wiring Harness Compromised
Broken, corroded or shorted wires can interrupt the starter signal.
Low Voltage Battery
Low battery voltage can be responsible for communication and start errors.
Bad Starter Motor
A bad starter motor can short the circuit and cause grounding issues.
Corrosion of connectors
Moisture and dirt inside connectors can cause poor electrical contact.
Terminal 50 Error Troubleshooting
Diagnose properly before replacing parts.
Step 1: Check the battery condition
Use a multimeter to check battery voltage.
- Healthy battery voltage is 12.4V – 12.7V
- Less than 12V means weak battery
If your battery terminals are corroded, clean them.
Step 2: Check Starter Relay
1. Find the fuse box and locate the starter relay, then check it for damage.
You can also check it by replacing it with another identical relay.
Step 3: Scan Vehicle
Read fault codes with an OBD2 scanner.
Some similar common codes are:
- Starter activation failure
- Terminal 50 Open circuit
- Short to ground detected
Step 4: Examine the Wiring
Check the wiring between:
- ignition lock
- Starter relay.
- Electric starting motor
Looking for:
- Burned wires
- Loose connections
- Insulation cracked
Step 5: Check voltage at terminal 50
Check that voltage is getting to the starter when you turn the key to start, using a multimeter.
If there is no voltage , it could be the ignition switch or the relay .
How to Repair Terminal 50 Error
Now let’s talk about solutions.
1. Replace Bad Starter Relay
One of the most common culprits is a bad relay.
How to Change:
- Switch off the ignition
- Open the fuse box’s cover
- Replace the faulty relay.
- Fit a new compatible relay.
- Startup test vehicle
This is usually an inexpensive repair.
2. Fix Damaged Wiring
Wiring harness damaged:
- Replace damaged wiring
- Tighten loose terminals.
- Use proper insulating tape
- Cleaning corrosion from connectors
Always disconnect the battery before doing any electrical repairs.
3. Change Ignition Switch
If the ignition switch does not send the proper signal, it will need to be replaced.
Symptoms of a Faulty Ignition Switch:
- Key turn no reply
- Random initial problems
- Dashboard flashing
For modern cars it is best to have it installed by a professional.
4. Inspect and Replace Starter Motor
If the starter motor is weak or damaged it may overload the circuit.
Signs of a starter failure:
- Grinding Sound
- Crankless Clicking
- Smoke at start area
If tests show the starter motor to be faulty, replace it.
5. Recharging or Replacing the Battery
Sometimes the problem is that the battery voltage is too low.
You will:
- Charge the battery
- Output of charging system test
- Replace batteries with new ones if necessary.
Most batteries last around 3-5 years.
Terminal 50 Error – Can You Drive With It?
Driving with a Terminal 50 Error is dangerous because the car could just refuse to start without warning. “Sometimes it can be an intermittent electrical fault that has an impact on other systems.”
The best thing to do is to diagnose and fix the problem as soon as possible.
Tips to Avoid Terminal 50 Error
To prevent future problems, follow these maintenance tips:
- Check battery terminals on a regular basis
- Maintain Electrical Connectors Clean
- Avoid water ingress to engine bay
- Change dead batteries early
- Periodic service starter system
Preventive maintenance stops costly repairs down the road.
Estimated Cost to Correct Terminal 50 Error
Actual fault determines repair costs.
| Repair Kind | Cost estimate |
|---|---|
| Starter Relay Replacement | $20–$80 |
| Electrical Services | $50–$200 |
| Replace Ignition Switch | $150–$400 |
| Replacement of Starter Motor | $200–$600 |
| Change Batteries | $100–$300 |
Complicated electronics can make luxury cars more expensive.
Closing Words
The Terminal 50 Error is most commonly linked to the starter circuit and electrical system of the vehicle. Common causes are bad relays, bad wiring, weak batteries or ignition switch problems.
By troubleshooting the problem step by step and repairing damaged parts, proper starting performance is restored and unanticipated breakdowns are prevented.
If you are not sure about electrical testing, have a professional automotive technician help to avoid further damage.
Well-timed repairs and proper maintenance will ensure that your vehicle runs fine and is error-free.
