The OBD-II diagnostic trouble code P0441 signifies an issue within the Evaporative Emission Control (EVAP) system, specifically indicating “Incorrect Purge Flow.” This code is triggered when the engine control unit (ECU) detects that the purge flow from the EVAP system is outside the expected parameters, suggesting a malfunction in controlling fuel vapor purging.
Understanding the EVAP System and Purge Flow

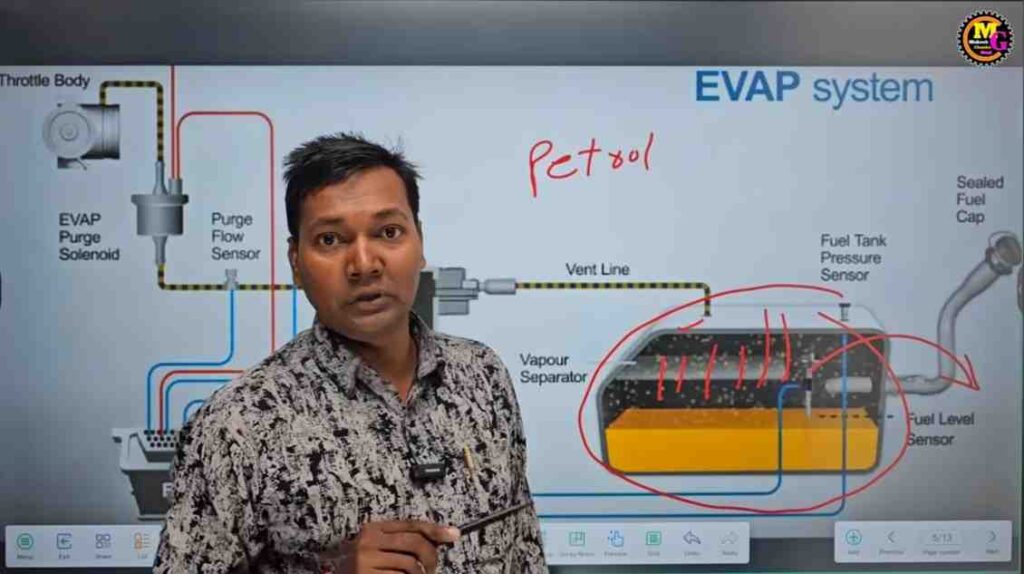

The EVAP system is designed to capture and store fuel vapors from the fuel tank, preventing them from escaping into the atmosphere. These vapors are temporarily held in a charcoal canister and, under specific operating conditions, are directed into the engine’s intake manifold to be burned during combustion. The purge valve, also known as the purge solenoid, regulates the flow of these vapors from the charcoal canister to the engine. A properly functioning purge valve ensures that fuel vapors are introduced into the engine at appropriate times and rates.
Common Causes of Code P0441
Several factors can lead to the P0441 code, including:
Faulty Purge Valve/Solenoid: A malfunctioning purge valve may fail to open or close correctly, disrupting the proper flow of fuel vapors.
Damaged or Disconnected EVAP Lines: Cracks, disconnections, or blockages in the hoses connecting the EVAP components can impede vapor flow.
Defective Charcoal Canister: A compromised canister may not effectively store fuel vapors, leading to system inefficiencies.
Faulty Vent Valve: If the vent valve is stuck closed, it can cause excessive vacuum in the EVAP system, affecting purge flow.
Electrical Issues: Problems such as damaged wiring or poor connections can disrupt the operation of EVAP components.
Symptoms Associated with P0441
While the Code P0441 code may not always present noticeable symptoms, drivers might experience:
Illuminated Check Engine Light: The most common indicator of an EVAP system issue.
Fuel Odor: A noticeable smell of fuel around the vehicle, indicating vapor leakage.
Decreased Fuel Efficiency: Potential reduction in fuel economy due to improper vapor purging.
Diagnostic Steps for Code P0441
To accurately diagnose the P0441 code, the following steps are recommended:
1. Visual Inspection: Examine the gas cap for damage or improper sealing and inspect EVAP hoses for signs of wear, cracks, or disconnections.
2. Purge Valve Testing: Assess the purge valve’s functionality by checking its ability to hold vacuum when closed and ensuring it opens appropriately when energized.
3. Smoke Testing: Utilize a smoke machine to detect leaks within the EVAP system by introducing smoke and observing any escaping vapor.
4. Electrical Inspection: Verify the integrity of wiring and connectors associated with EVAP components for signs of corrosion, damage, or disconnections.
Potential Solutions for Code P0441
Depending on the identified cause, repairs may involve:
Gas Cap Replacement: Installing a new gas cap to ensure a proper seal.
Purge Valve Replacement: Replacing a faulty purge valve to restore correct vapor flow regulation.
Repairing or Replacing EVAP Lines: Addressing damaged or disconnected hoses to maintain system integrity.
Charcoal Canister Replacement: Installing a new canister if the existing one is compromised.
Addressing Electrical Issues: Repairing or replacing faulty wiring or connectors to ensure proper component operation.
Conclusion
The Code P0441 code indicates an anomaly in the EVAP system’s purge flow, which is crucial for controlling fuel vapor emissions. While this issue may not immediately affect vehicle performance, addressing it promptly is essential to maintain environmental standards and prevent potential fuel efficiency losses. Proper diagnosis and timely repairs will ensure the EVAP system functions correctly, contributing to reduced emissions and optimal vehicle operation.
For a visual explanation of the P0441 code and potential fixes, you might find the following video informative:
