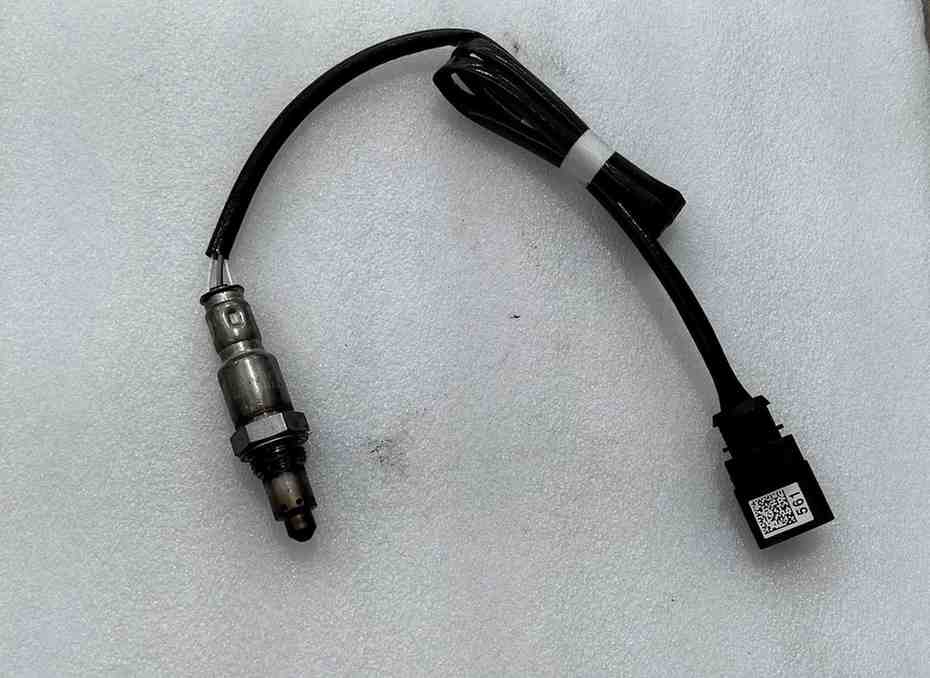

The Diagnostic Trouble Code (DTC) P0141 indicates a malfunction in the heater circuit of the oxygen sensor located on Bank 1, Sensor 2. This sensor, positioned downstream of the catalytic converter on the engine’s first bank, relies on an internal heater to quickly reach optimal operating temperature for accurate monitoring of exhaust gases. A malfunction in this heater circuit can lead to delayed sensor response, affecting fuel mixture adjustments and emission controls.
Potential Causes:

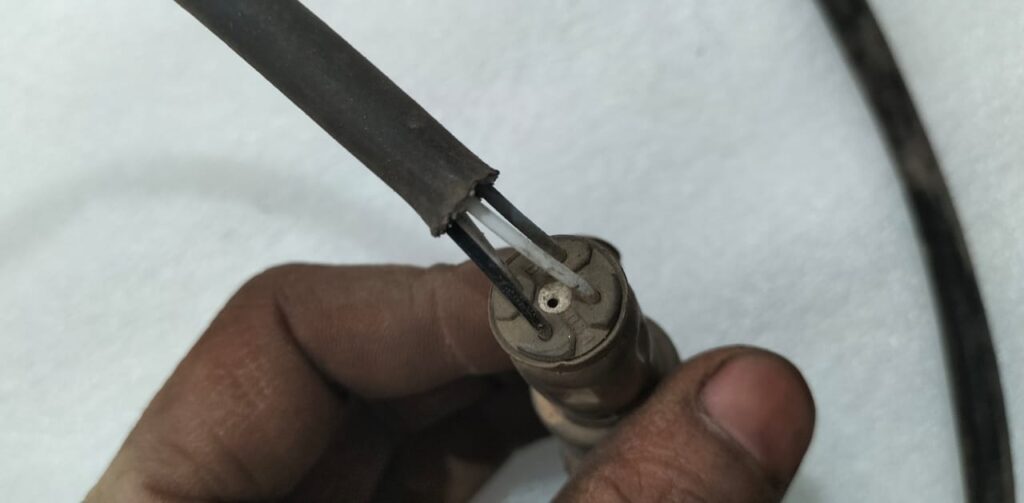

Faulty Oxygen Sensor: The sensor’s heater element may be defective, preventing it from reaching the necessary operating temperature.
Wiring or Connector Issues: Damaged, corroded, or disconnected wires and connectors can disrupt the heater circuit’s functionality.
Blown Fuse: A fuse associated with the O2 sensor heater circuit may have blown, interrupting power supply.
Symptoms:
Illuminated Check Engine Light.
Decreased fuel efficiency.
Rough engine idle or misfires (though rare).
Diagnosis:
1. OBD-II Scanner: Confirm the P0141 code and check for additional codes.
2. Visual Inspection: Examine the O2 sensor and its wiring for damage or corrosion.
3. Resistance Testing: Measure the heater circuit’s resistance with a multimeter to ensure it aligns with manufacturer specifications.
4. Voltage Verification: Check for proper voltage supply to the heater circuit from the Engine Control Module (ECM).
Possible Solutions:
Replace the Oxygen Sensor: If the heater element is faulty, installing a new sensor is often the most effective solution.
Repair Wiring or Connectors: Address any damaged or corroded wiring and connectors to restore proper circuit function.
Replace Blown Fuses: If a fuse associated with the heater circuit is blown, replace it to re-establish power.
Addressing the Code P0141 code promptly is essential to maintain optimal fuel efficiency and ensure compliance with emission standards.
