P11A700 Fault Code: Cam Adjuster B Cylinder 2 Electrical Malfunction Causes, Symptoms and Fixes

Understand the meaning, causes, symptoms, diagnosis, repair methods, and prevention tips for the P11A700 Fault Code. How to fix Cam Adjuster B Cylinder 2 electrical malfunction on modern cars.

Introduction

The P11A700 Fault Code is a diagnostic trouble code (DTC) for “Variable Valve Timing (VVT) System Performance Problem”. That means that the Engine Control Module (ECM) has detected an electrical problem with Cam Adjuster B Cylinder 2. The cam adjuster is used to adjust the camshaft timing for improved engine efficiency, fuel economy and emissions.

If this system fails the engine may run poorly, idle rough, have poor fuel economy or even be hard to start. Early diagnosis and repair are key to preventing further engine damage.

P11A700 Fault Code Meaning What Does P11A700 Code Mean?

Cam Adjuster B Cylinder 2 Understanding

P11A700 Fault Code Description . The ECM has detected an electrical fault in the Cam Adjuster B circuit on Cylinder Bank 2. Could be the actuator, solenoid, wiring, connectors or the ECM itself.

The VVT system varies the valve timing continuously according to:

Motor speed

Increases power output in different RPM ranges.

Load on the Engine

Increased combustion efficiency.

Throttle Position Sensor (TPS)

Provides a smoother acceleration.

Oil Press

Allows accurate movement of the cam adjuster .

The ECM will illuminate the Check Engine Light and save the P11A700 Fault Code if it finds an abnormal electrical signal.

Common Reasons for Error Code P11A700

1. Cam Adjuster Solenoid Malfunction

A damaged or worn solenoid may not be controlling camshaft timing properly.

2. Damage to Electrical Wiring

Broken, shorted or frayed wires can disrupt communication between the ECM and the actuator.

3. Corroded or Loose Connectors

Corrosion or poor electrical contact can cause intermittent faults.

4. Fault in the Camshaft Position Sensor

it may confuse the ECM with false cam position readings and set the code.

5. Engine oil that is dirty or low

If the oil is dirty it could cause the VVT mechanism to not work properly.

6. Breakdown of Internal Cam Adjuster

Inside the cam adjuster, mechanical wear can impede proper movement.

7. Engine Control Module (ECM) Problems

This failure can be caused by software or hardware failures in the ECM, but this is rare.

P11A700 Fault Code Symptoms

Common Symptoms

The following symptoms may be seen with the P11A700 Fault Code:

Check Engine Light ON

The first warning sign is generally the Check Engine Light coming on.

Idle lumpy

Valve timing incorrect, engine idle unstable.

Engine Power Reduced

Drivers might experience sluggish acceleration and reduced responsiveness.

Bad Fuel Economy

If the valve timing is wrong, the engine will use more fuel.

Engine Misfires

The engine may misfire on acceleration or at idle.

Difficult Start

The vehicle may take longer to crank to begin.

Loss of Power in Engine

Some cars will enter limp mode to protect the engine.

How to Diagnose the P11A700 Trouble Code

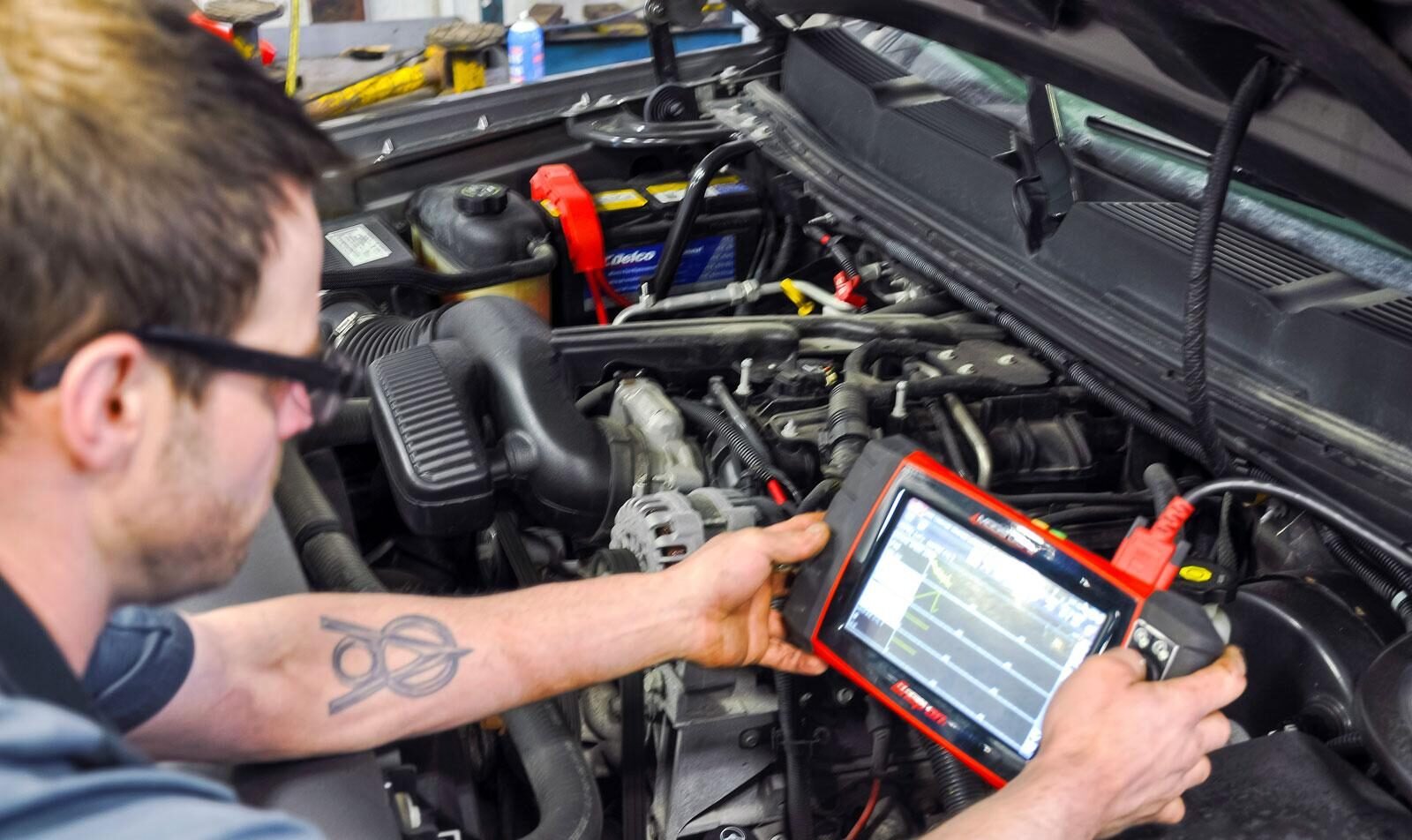

Scan the Vehicle 

1. Use a sophisticated OBD-II scanner to check the P11A700 Fault Code and any other related codes.

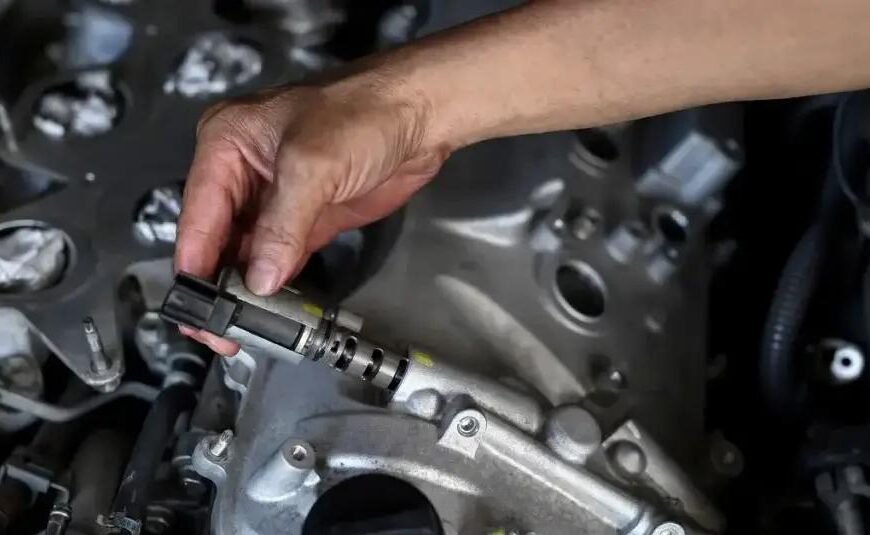

Cam Adjuster Solenoid Check

Check for physical damage, contamination or improper operation.

Check Wiring and Connectors

Search for:

Broken lines
Terminals loose
Corrosion
Scorch marks
Water ingress

Oil Level – Engine

Check:

Oil level correct
Oil viscosity sufficient
Oil cleanliness

Live Data Monitoring

See:

Camshaft timing data
VVT actuator operation
Signals from the camshaft position sensor

Test Electronics Circuits

Digital multimeter – Check voltage, resistance and continuity.

How to fix code P11A700?

Replace cam adjuster solenoid

If the test indicates an internal failure replace the solenoid.

Repair Broken Wires

Fix broken circuits or replace damaged wiring.

Electrical Connectors, Clean or Replace

Corrosion removal and secure electrical contacts.

Camshaft Position Sensor Replacement

If the readings are wrong replace the sensor.

Change Engine Oil & Filter

New engine oil often improves VVT system performance.

Cam Adjuster Replacement

If mechanical damage is found, renew the complete cam adjuster assembly.

Replace or Change the ECM

Do not replace the ECM until all other components have been tested.

Can you drive with fault code P11A700

You can drive with the P11A700 Fault Code but it is not recommended for extended periods of driving.

Ignoring the problem can lead to:

Decreased engine performance
Poor fuel economy
Greater emissions
Overheating of Engine
Internal engine failure
Costly repairs

Get the vehicle diagnosed as soon as possible.

Repair Cost Estimate

Fix	Estimated Cost
Replacing Cam Adjuster Solenoid	$120 – $450
Wiring Fix	$50 – $300
Replacement Connector	$30 – $120
Replacing the camshaft position sensor	$80 – $300
Engine oil and filter change	$50 – $150
Cam Follower Replacement	$300 – $1,000
ECM Diagnosis / Repair / Replacement	$500 – $2,000+

Depending on the make and model of the vehicle, and labor rates, the cost will vary.

How to Avoid P11A700 Fault Code

When to change engine oil

Use the engine oil and filter recommended by the manufacturer.

Check Wiring When Servicing

Look for broken insulation or loose connections.

Quickly fix oil leaks

Keep VVT system oil pressure within specs

Routine Vehicle Inspections

Routine diagnostics can catch problems before they become serious.

Install Quality Replacement Parts

OEM or quality aftermarket parts improve reliability.

Concluding

The P11A700 code indicates an electrical malfunction in the Variable Valve Timing (VVT) Cam Adjuster B Cylinder 2 circuit. Common reasons for the P0016 trouble code include: Defective solenoid Wiring issues Connector corrosion Low engine oil levels Sensor issues Mechanical problems within the cam adjuster.

Early diagnosis and timely repairs can restore engine performance, improve fuel economy and prevent costly engine damage. If the Check Engine Light illuminates and you experience symptoms such as rough idling or lack of power, check the VVT system right away.

Frequently Asked Questions (FAQ)

What is the P11A700 Fault Code?

The P11A700 Fault Code signifies that there is an electrical problem in the engine’s Variable Valve Timing system in the Cam Adjuster B Cylinder 2 circuit.

Low oil can cause a P11A700.

Yes. Low or contaminated engine oil can also affect the operation of the VVT system and trigger the fault code.

How to Fix the P11A700 Fault Code?

Repairs can include replacing the cam adjuster solenoid, repairing damaged wiring, replacing the camshaft position sensor, changing the engine oil or replacing the cam adjuster assembly, depending upon the diagnosis.
