Facing OBD Codes P177B & P189A codes? Fix ‘Clutch 1 Tolerance Reached’ or ‘Clearance Too Small’ in DCTs/automated manuals. Learn symptoms (slipping, limp mode), causes, DIY diagnostics & critical repairs. OBD Code P177B P189A DCT ClutchFailure TransmissionRepair“
Table of Contents
Understanding DTC P177B & P189A
OBD-II codes P177B (Clutch 1 Tolerance Limit Reached) and P189A (Clutch 1 Clearance Too Small) indicate critical wear or calibration failures in Clutch 1 of dual-clutch transmissions (DCT) or automated manuals. These “passive/sporadic” (00101100) faults arise when clutch slippage exceeds limits (P177B) or hydraulic clearance is insufficient (P189A). Ignoring them risks transmission seizure, overheating, or total failure.
Key Symptoms
Watch for these drivability issues:
- Slipping/grabbing: RPM flares during shifts, delayed engagement, or jerky acceleration.
- Limp mode activation: Transmission locks in one gear (often 2nd or 3rd) with reduced power.
- Warning lights: Check engine + transmission temperature/gear failure warnings.
- Burning smell: Overheated clutch material from excessive friction.
- Abnormal noises: Grinding or whining from the transmission.
Note: Symptoms may disappear temporarily but worsen under load.
Top Causes
Core Culprits:

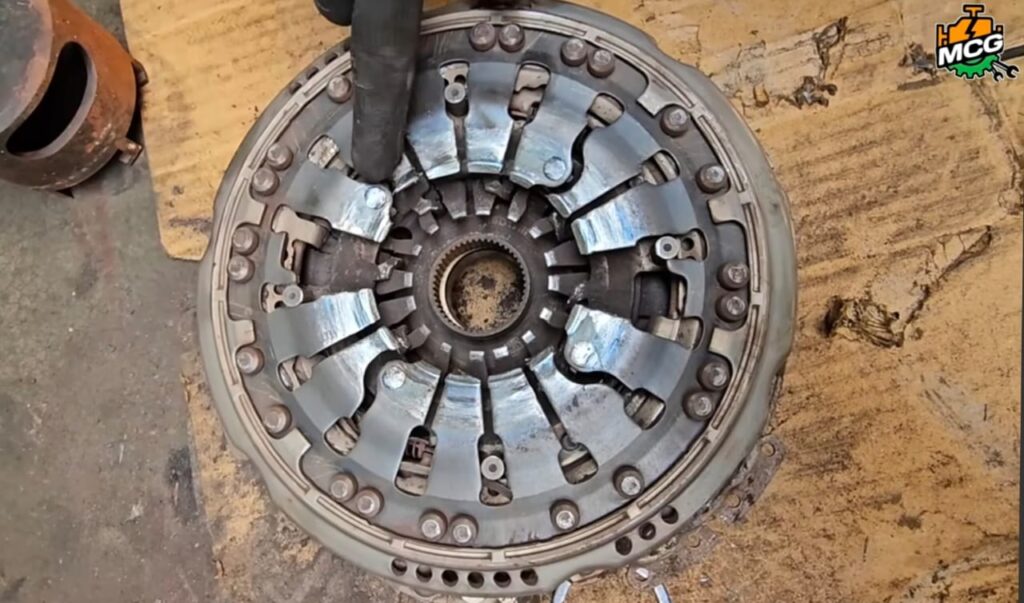

- Clutch pack wear: Worn friction plates or warped pressure plates (common at 80k+ miles).
- Hydraulic system failure: Low fluid, air in lines, or weak clutch actuator pump.
- Solenoid/valve block issues: Sticky shift solenoids or leaking valve body seals.
- Sensor failures: Faulty clutch position or input speed sensors.
- Software glitches: Incorrect adaptation values after battery disconnects or updates.
- Less Common: Damaged clutch hub splines, contaminated fluid, or mechatronics unit failure.
Step-by-Step Diagnosis
Tools needed: OBD-II scanner, transmission pressure gauge, multimeter.
1. Scan & Record: Check live data: Monitor clutch slip RPM, actuator pressure, and adaptation values.
2. Fluid Inspection: Verify fluid level/condition (burnt smell = clutch overheating). Replace if contaminated.
3. Hydraulic Pressure Test: Connect gauge to clutch circuit; compare pressure to specs (e.g., 15–25 bar). Low pressure = pump/solenoid issue.
4. Electrical Tests: Test clutch position sensor resistance and solenoid operation.
5. Mechanical Check: Measure clutch clearance with dial indicator (specs: 0.8–1.5mm). Excessive wear triggers P189A.
Fixes, Costs & Prevention
Repair Solutions:

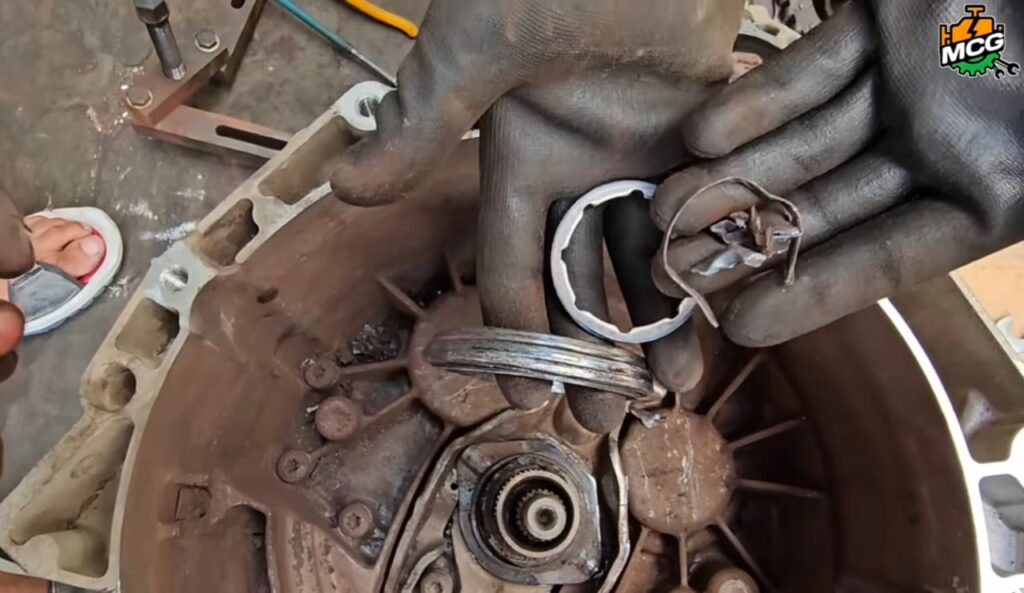

- Clutch pack replacement: $1,500–$3,500 (parts/labor). Requires transmission removal.
- Valve body/solenoid repair: $600–$1,200 for seal kits or solenoid replacements.
- Fluid flush & adaptation reset: $150–$300 (critical after repairs).
- Software reprogramming: Update TCM/PCM at dealership ($200–$500).
Prevent Recurrence:
- Strict fluid changes: Every 40k miles for DCT fluid (use OEM spec).
- Avoid aggressive driving: Minimize “launch control” use and abrupt starts.
- Fix leaks immediately: Prevent air ingress in hydraulic lines.
- Battery maintenance: Prevent voltage drops that corrupt adaptation values.
Critical Note: Driving with P177B/P189A can melt clutch plates or warp flywheels—tow the vehicle if severe slipping occurs.
Why These Codes Demand Urgency
P177B and P189A signal advanced mechanical wear. Delaying repairs often escalates damage to mechatronics units ($3k+) or gear sets. Start with fluid/electrical checks, but expect clutch replacement if clearance/slippage exceeds limits. Always reset adaptations post-repair!
